Configure Lighting Settings (Setback)

Configure Lighting Settings (Setback)


Idea
To learn how Setback works, visit Setback Overview.

Setback Control Panel

There are two main parameters on the Setback Control Panel:
  1. Setback Level - A fixture's light level when Setback is active
  2. Setback Mode - Enable Automatic, Scheduled, Duration, or Astronomical (Sunrise/Sunset) modes

Tips and Tricks

  1. Use Automatic Setback to maximize time in Setback and drive savings, configure setback on smaller sub-groups of fixtures
  2. Use Astronomical Setback schedule exterior fixtures to turn on at sunset and off again at sunrise
  3. Use the Tune Live View to verify which groups are in Setback

Apply Setback Settings

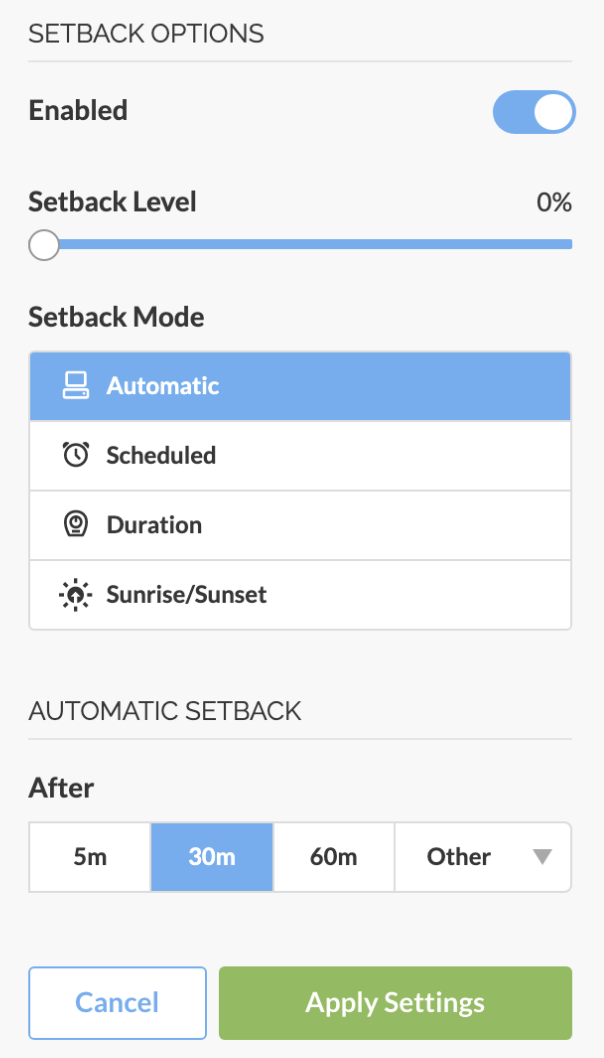

Automatic Setback
  1. Select the target Group
  2. In the Setting tab and toggle Enabled in the Setback section
  3. Select Automatic in the Setback Mode section
  4. Configure Setback Level
  5. Configure Setback Timeout. (i.e. how long all nodes in the Group need to be inactive before the Group transitions from the Task Tune settings to the Automatic Setback settings)
  6. Click Apply Settings


Info
If a Group is in Automatic Setback and a single light fixture in the Group detects occupancy, the light fixture will illuminate at the default Setback Active Level of 100%.

If more than one light fixture in the Group detects occupancy, then the Group will exit Automatic Setback and transition to the Task Tune settings. Fixtures detecting occupancy will illuminate at the Task Tune Active Level while the remaining fixtures not detecting occupancy will transition from the Setback Level to the Task Tune Inactive Level.

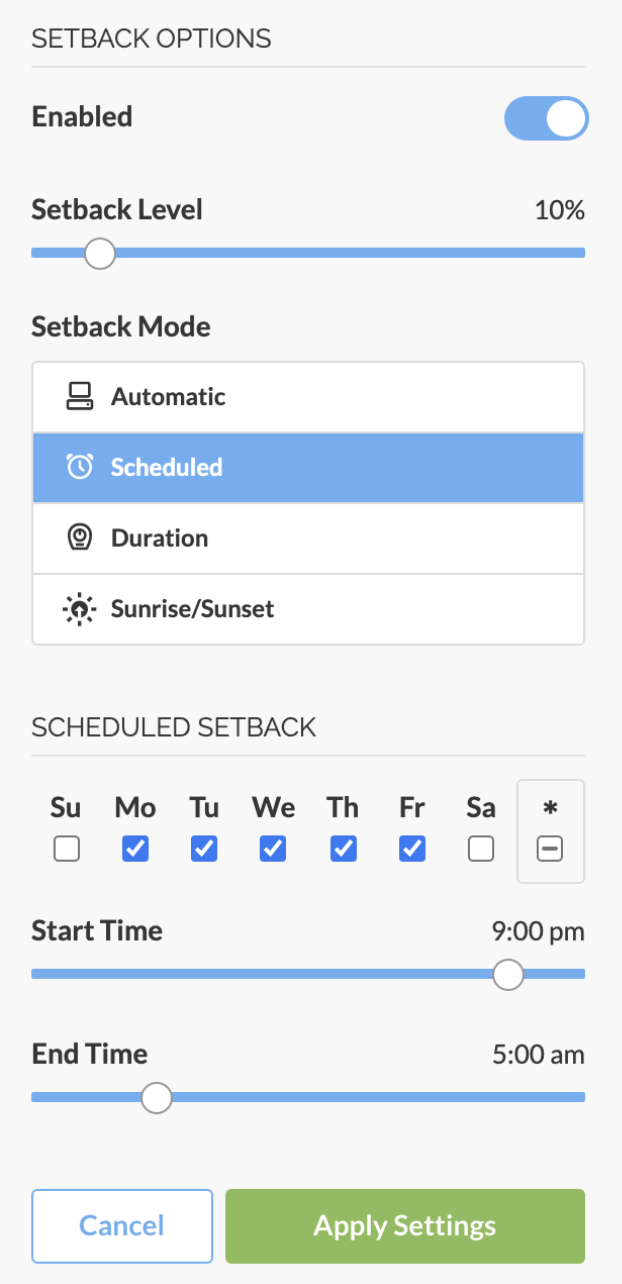

Scheduled Setback
  1. Select the target Group or Sub-Group
  2. In the Setting tab and toggle Enabled in the Setback section
  3. Click Scheduled in the Setback Mode section
  4. Configure Setback Level
  5. Select the days of the week Setback is Active
  6. Configure the Start and End Time that Setback is Active
  7. Click Apply Settings

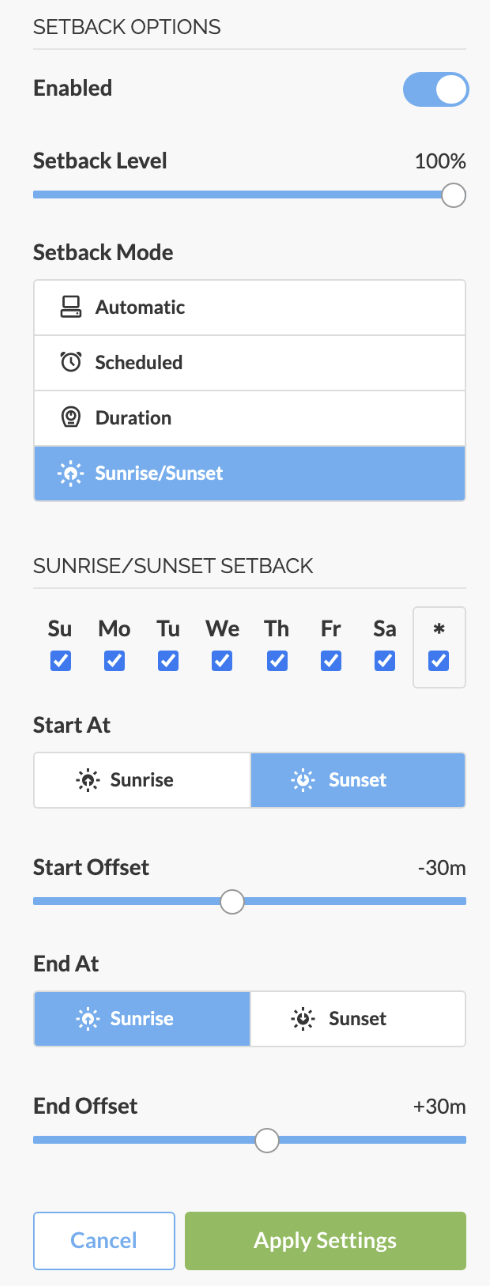

Astronomical Setback
  1. Select the target Group or Sub-Group
  2. In the Setting tab and toggle Enabled in the Setback section
  3. Click Sunrise/Sunset in the Setback Mode section
  4. Configure Setback Level
  5. Select the days of the week Setback is Active
  6. Configure Start At event (Sunrise or Sunset)
    1. Configure the Start Offset (i.e. how long after or before the astronomical event Setback becomes Active)
  7. Select End At event (Sunrise or Sunset)
    1. Configure the End Offset (i.e. how long after or before the astronomical event Setback becomes inactive)
  8. Click Apply Settings

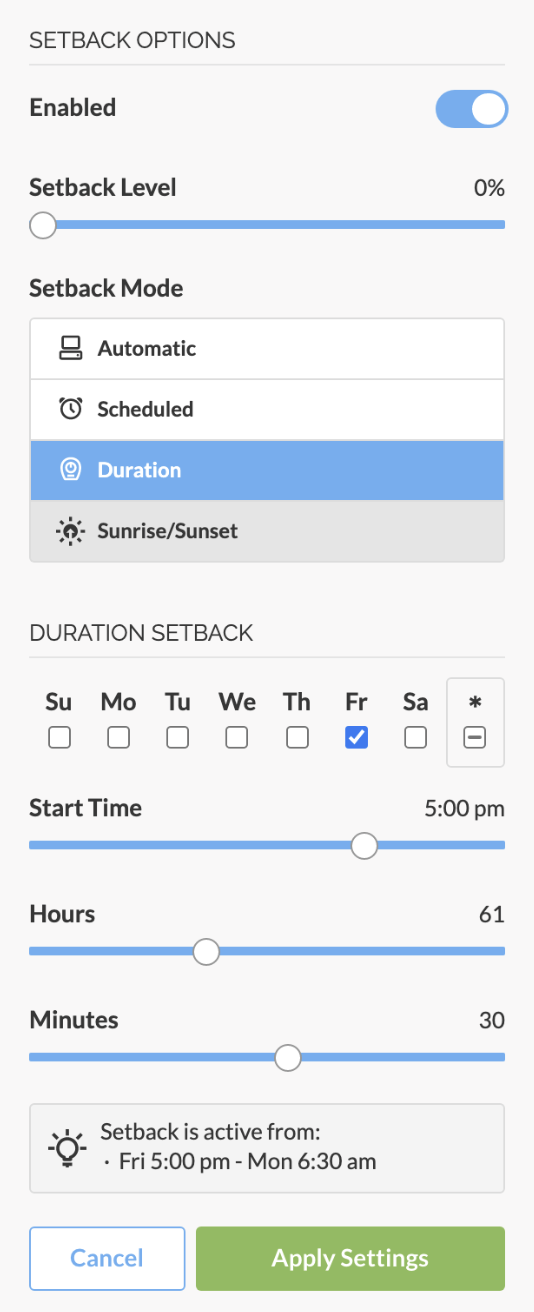

Setback Duration
  1. Select the target Group or Sub-Group
  2. In the Setting tab and toggle Enabled in the Setback section
  3. Click Duration in the Setback Mode section
  4. Configure Setback Level
  5. Select the days of the week Setback is Active
  6. Configure Start Time
  7. Configure the duration that Setback will remain active using the Hours and Minutes slider
    1. Use the Setback Duration help text below the sliders to confirm the correct duration is set Click Apply Settings
  8. Click Apply Settings
