Link or Unlink Scenes and Keypad Buttons

Link or Unlink Scenes and Keypad Buttons

Once a SiteWorx compatible keypad is uploaded to SiteWorx, and a user has created a set of scenes (4 scenes), those scenes can be assigned to a keypad’s buttons.
Alert
A Group cannot be edited on a keypad with assigned scenes.

Assign Scenes to a SiteWorx Keypad

  1. Open the Administration Console, and click on the Keypads icon
  2. Click the target Keypad from the list

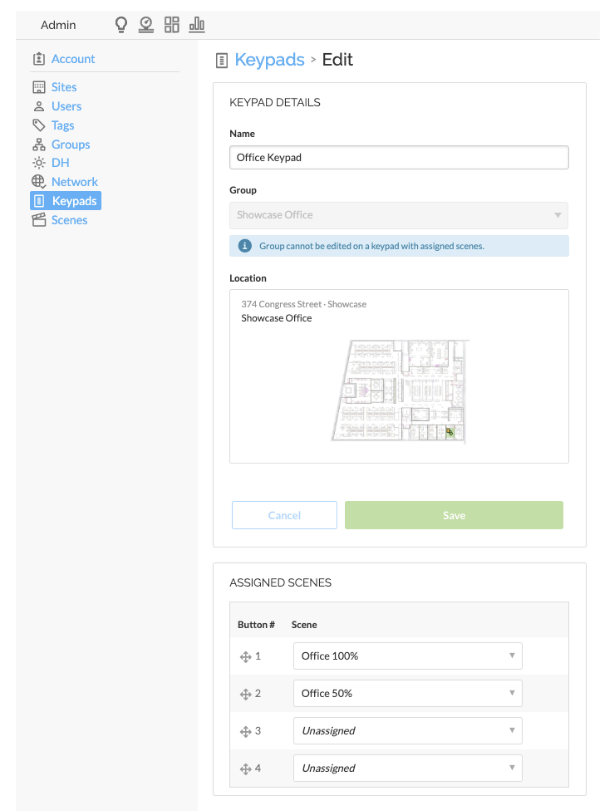

    Keypad Configuration

  3. Assign the corresponding Group from the drop-down that matches the Group you assigned to the desired Scenes

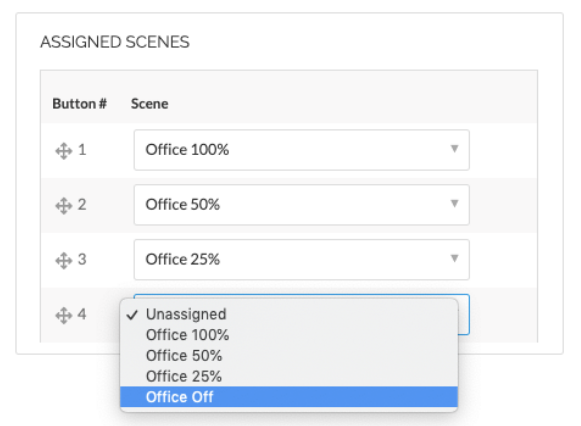

  4. Using the Assigned Scenes menu, configure each Keypad button with the desired Scene from the drop-down

    Assigned Scenes

Unlink Scenes from a Keypad Button

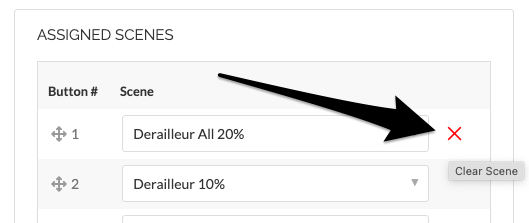

To remove a Scene from a Keypad button or assign a new Scene to a Keypad button, hover over the right side of the Scene and click the "Clear Scene" button, indicated by the red "X."

Clear Scene
