Add a Gateway

1. Click Lighting Gateway

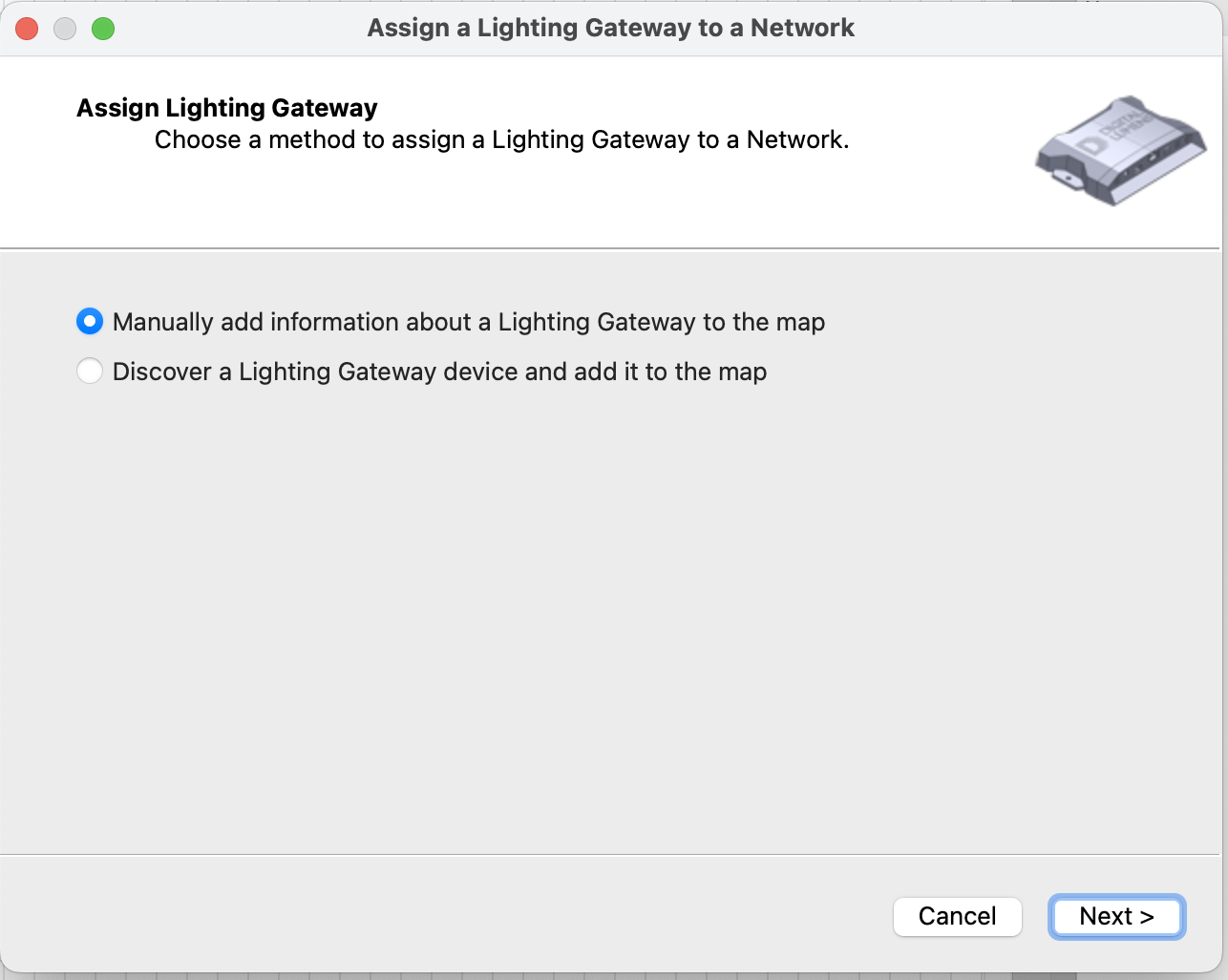

2. Select Manually add gateway information to the map and then click Next

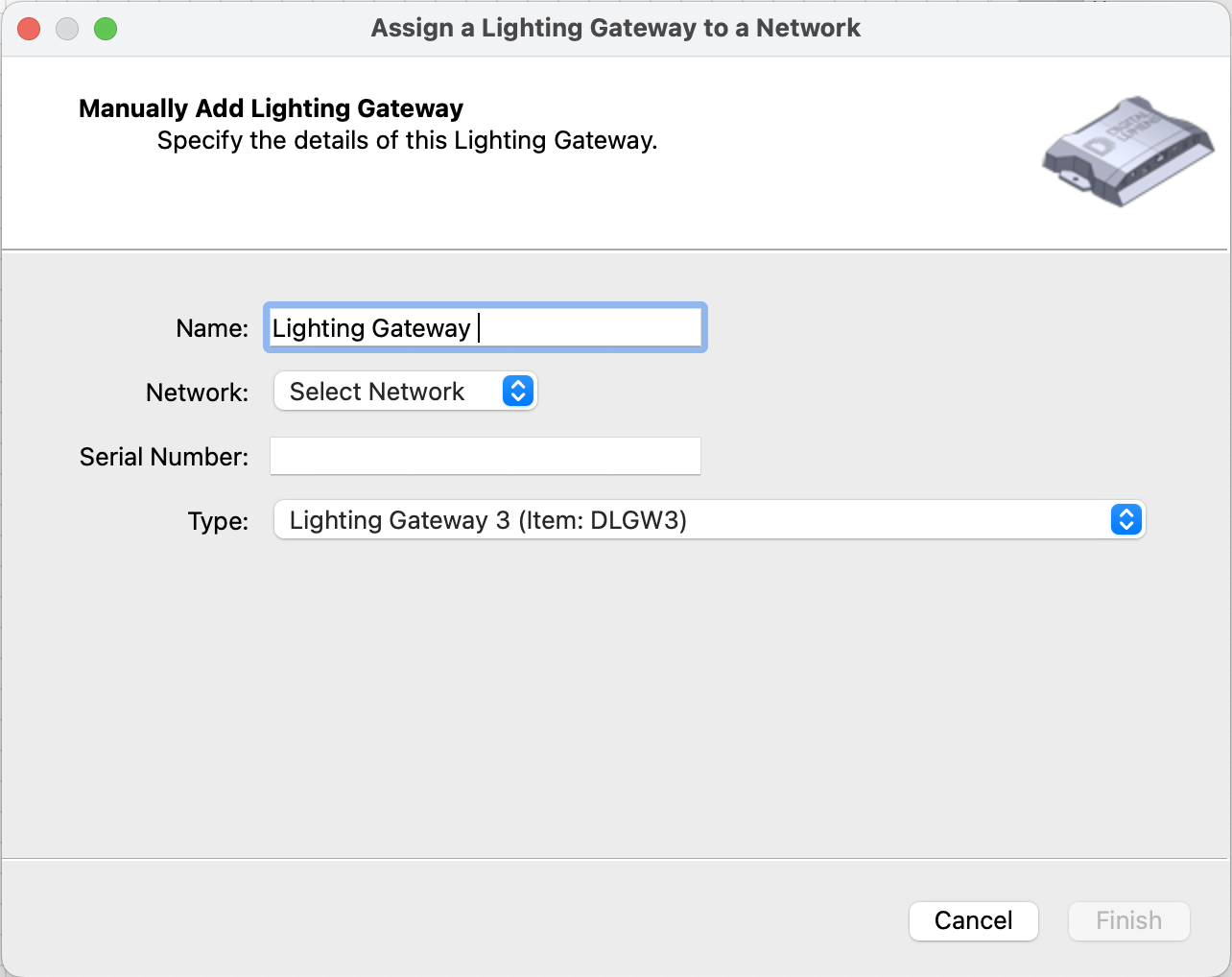

3. Enter all lighting gateway information, associate the lighting gateway with the desired network, and then select the lighting gateway type (refer to the lighting gateway labeling for the lighting gateway "Item" number)




4. Click Finish


Since gateways usually match 1:1 with Zones in SiteWorx, it's often recommended to have gateway names match Zone names.

Gateway names will appear in SiteWorx.
